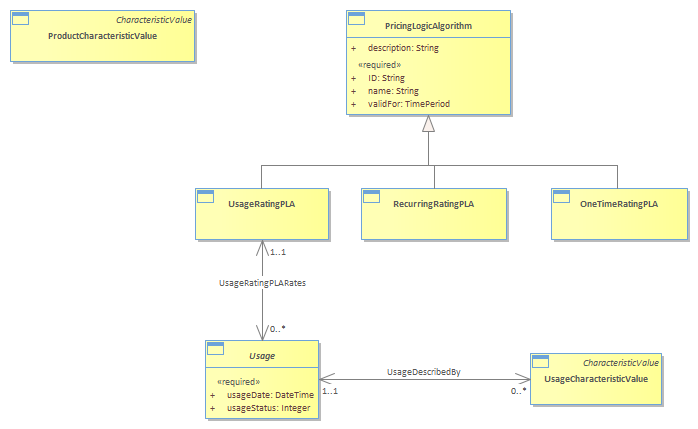

Figure Pr.28 - Types of Pricing Logic Algorithms and associations to different characteristic values

Figure Pr.28 - Types of Pricing Logic Algorithms and associations to different characteristic values : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	5/19/2022 4:33:56 AM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{64CD2817-7CA3-4795-812F-BB829B943EDA}

This diagram shows how the PricingLogicAlgorithm uses the ProductCharacteristicValue and the Usage record information and associated UsageCharacteristicValue in order to generate a charge out of an event:<br/><br/>
