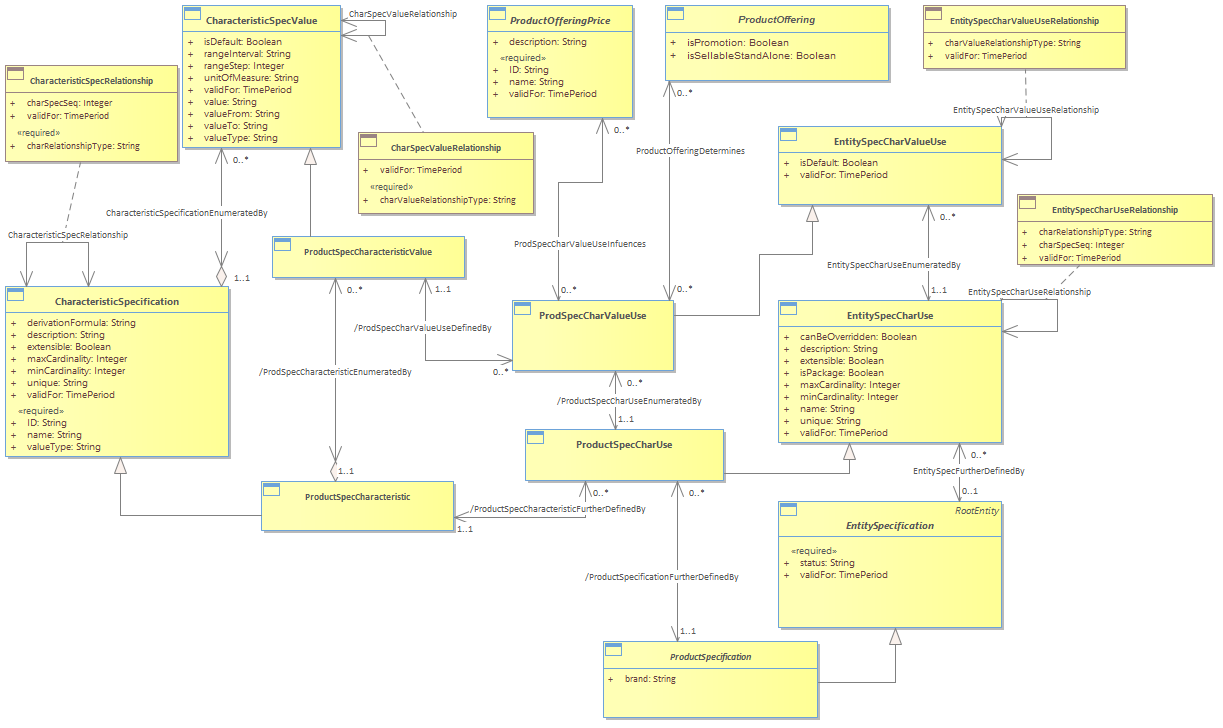

Figure Pr.44c - Product Spec Char Values and Product Offer : Class diagram
| Created: | 3/28/2022 3:51:09 PM |
| Modified: | 5/30/2022 3:33:00 AM |
 Project: |
|
| Advanced: |
The Figure shows the Characteristic Value Use association between characteristic and ProductOffering, that allows the offering to restrict the possible values from the complete list at the Product Specification level. This association can be applied, if the ProductOffering determines the applicable characteristic values – e.g. the ProductOffering “silver plan” only allows bandwidths 2000 Mbit and 5000 Mbit out of the values 1000Mbit, 2000Mbit, 5000Mbit and 8000Mbit that are possible for the ProductSpecCharValueUse “bandwidth” in general.<br/>
