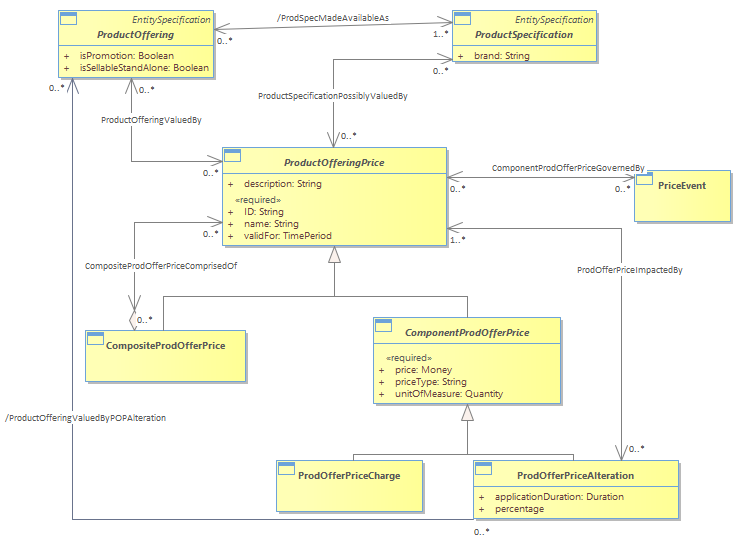

Figure Pr.10 - Product Offering Price Components : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
5/28/2022 7:10:44 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{3346B56A-E822-4f7b-8DB2-96C5C3A484DB} |
Each component of a ProductOfferingPrice can take on one of two forms. <br/>A component may represent the amount charged (ProdOfferPriceCharge) such as a monthly internet connection fee. <br/>Or, a component may represent an alteration (ProdOfferPriceAlteration) that will be made to the amount charged such as an installation allowance of $49.95 to the first month’s bill, which offsets an installation charge. An alteration impacts ProductOfferingPrice that can be a component as well as a composite price. For example, a tax alteration may impact the result of a charge reduced by an alteration (Ex: 100$ -10%). In this case, the Alteration impacts a composite price.<br/>The figure below depicts the two types of ComponentProdOfferPrices.<br/>
