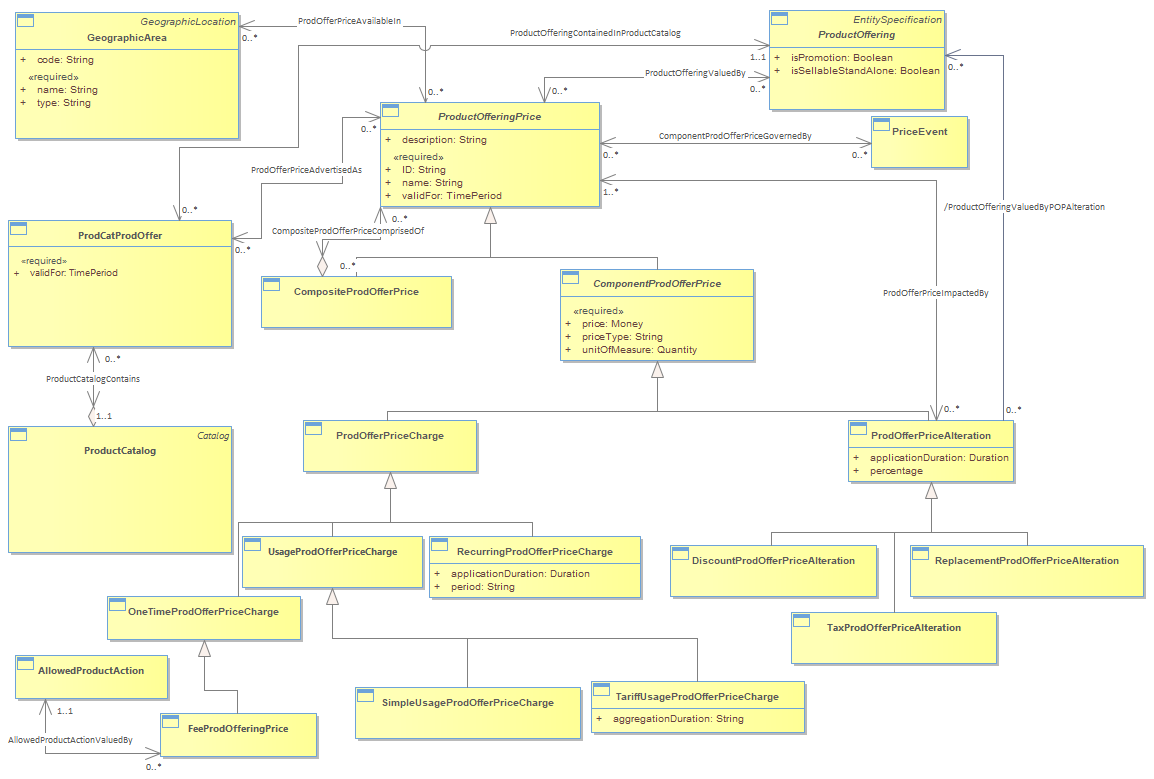

Figure Pr.13 - Complete Product Offer Price Model : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
5/28/2022 7:12:26 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{DEA5F6EC-2A97-42d3-8A85-2B424C657299} |
Putting charges and alteration in a single example provides a complete view of a ProductOfferingPrice. A simple wireless plan includes a 75 dollar phone, a 50 dollar activation fee, a 20 dollar monthly charge replaced by 10 dollar during 6 months, 10 cents a minute for additional minutes, and 25 cents a minute long distance. The components are<br/> • A 75 dollar One Time Charge (OneTimeProdOfferPriceCharge)<br/> • A 50 dollar Fee (FeeProdOfferingPrice)<br/> • A 20 dollar Recurring Charge per month (RecurringProdOfferPriceCharge)<br/> • A 10 dollar replacement of the recurring charge during 6 months (ReplacementProdOfferPriceAlteration)<br/> • A Tariff Usage comprising a 10 cent per minute Simple Usage and a 25 cent per minute Simple Usage for long distance (SimpleUsageProdOfferPriceCharge)<br/>Adding on to the example, suppose Sue is an employee of a company, that has a volume discount agreement with the service provider. The agreement is to waive the installation fee and provide a 20 percent discount on local minutes. This would manifest itself as:<br/> • A composite price that associated the 50 dollar Discount (DiscountProdOfferPriceAlteration) with the 50 dollar Fee<br/> • A composite price that associated the 20 percent Discount (DiscountProdOfferPriceAlteration) with the 10 cent per minute Simple Usage<br/>In addition a Tax (TaxProdOfferPriceAlteration) might be applied on each component or composite ProductOfferingPrice.<br/>The complete ProductOfferingPrice model is shown in the figure below.<br/>
