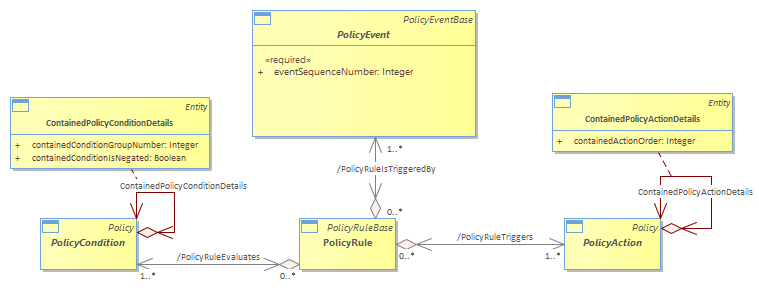

Figure Pr.15 - Policy Rule Components : Class diagram
Created: 3/28/2022 3:51:09 PM
Modified: 4/29/2022 4:46:48 PM
Project:
Advanced:
