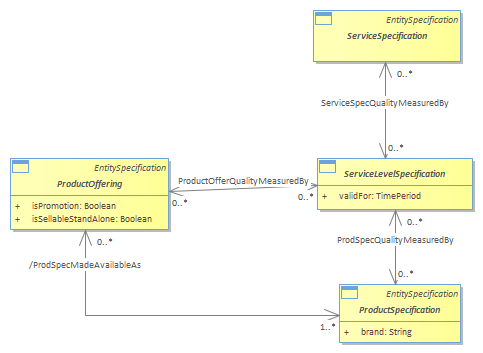

Figure SO.39 - Associating Service Level Specifications with Products and Services : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/21/2022 12:14:50 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{60ABBF63-9242-427d-9A04-A907334AB70A} |
Customer Service Level Agreements are expressed in terms that a Customer can understand. These Service Level Agreements are defined in terms of Service Level Specifications related to ProductOfferings and ProductSpecifications. ProductSpecifications are used in order to define a set of characteristics that the set of Service Level Specification will cover.<br/>Internal Service Level Agreements are usually defined in terms of resource-facing Service Level Specifications, which are typically too technical to be of interest to a customer. Supplier/partner Service Level Agreements can be expressed in terms of either customer-facing or resource-facing Service Level Specifications. The Figure below shows a Service Level Specification’s relationships to Products, Services, and their associated Specifications.<br/>
