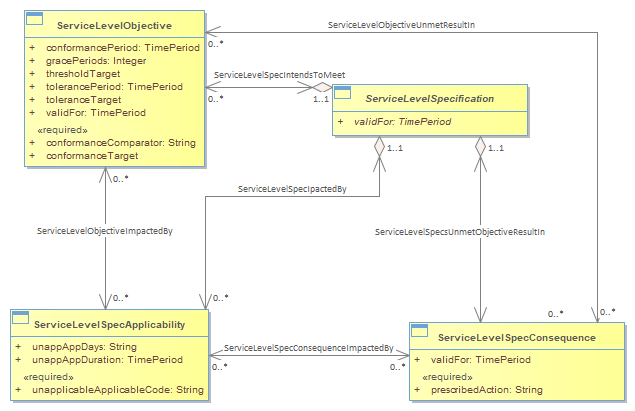

Figure SO.43 - ServiceLevelSpecApplicability : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/21/2022 12:18:36 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{D7995837-73A6-4fa6-9E23-621959AB283B} |
The applicability of Service Level Specifications, Service Level Objectives, and Service Level Specification consequences may vary by day and/or time of day. For example, a Service Level Objective may be represented by one set of metrics during weekdays and by another set during weekends. Thus, we may need to define a set of consequences to associate the proper effect of violating a Service Level Objective. For example, one consequence might be the result of a Service Level Violation during normal working hours, while a second consequence might be used to represent Service Level Violations that occur during non-working hours. This is handled by introducing a Service Level Specification applicability business entity as shown in the figure below.<br/>
