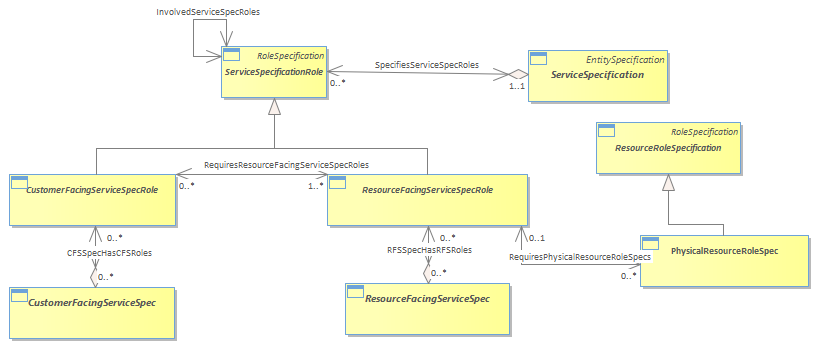

Figure SO.18 - Interaction Between ServiceSpecRoles and ResourceSpecRoles : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/21/2022 12:56:10 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{8B658156-A4C4-4e60-AEC1-3E95EC4079E6} |
ServiceSpecificationRole is an abstract base class that defines a ServiceSpecification in terms of a set of roles. The roles are then used to characterize the shared functionality of the Service, regardless of whether it is a resource or a customer facing service.<br/><br/>ServiceSpecificationRoles represent the shared functionality of a ServiceRole. Representing a Service in terms of ServiceSpecificationRoles enables the functionality of the Service to be defined independently of BusinessActor, PhysicalResource, LogicalResource, or other Services.<br/>
