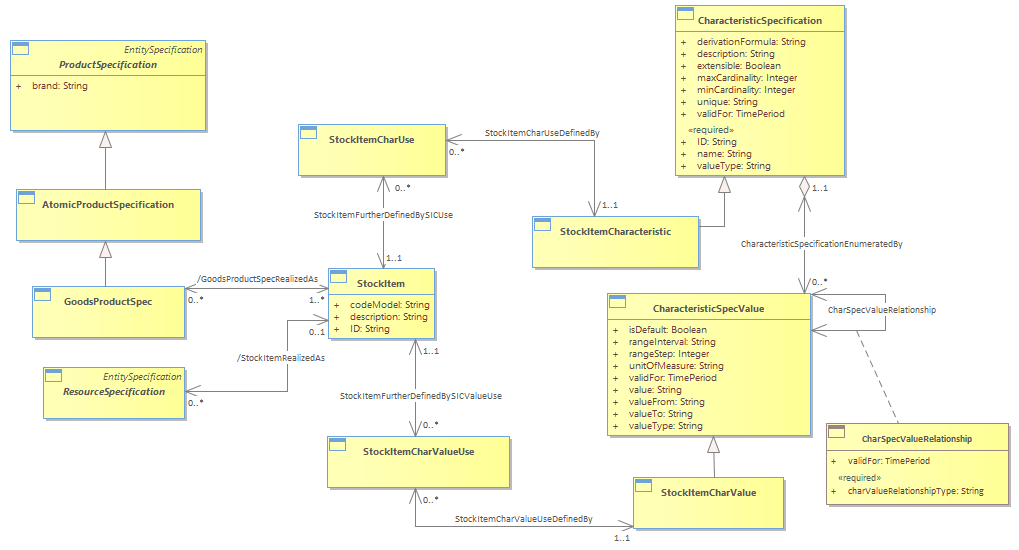

Figure SI.01a - StockItem detailed view : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/29/2022 4:03:42 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{C52BBE1D-1AEF-43ef-92DE-C13AD1E4A4F4} |
A StockItem is further defined by characteristics and characteristics values.<br/>A StockItem might have several values for the same Characteristic, but only if there is a default Value (the value of the “pre-configured” StockItem corresponding to factory configuration). This configuration can only be modified for the ProductSpec by a ProductSpec applying on it.<br/>For example, the disk space of a TV decoder’s record capacity can be enhanced (realized through Software update), then we create a specific ProductSpecification for the Record Capacity applying on the TV decoder ProductSpec.<br/>
