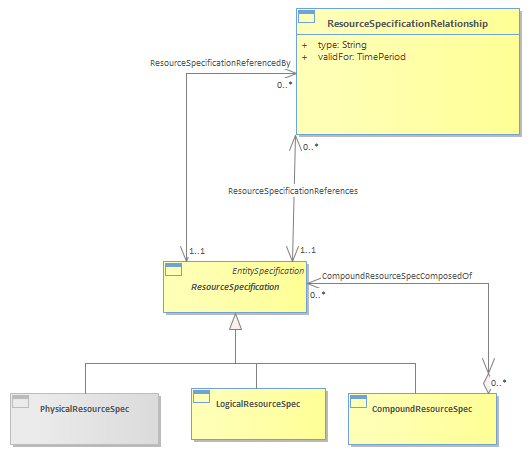

Figure Res.01 - Resource Specification hierarchy (OLD LR.52) : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
4/27/2022 11:52:17 AM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{436B84EA-1A7D-4e49-BA59-70D7A2E7B867} |
ResourceSpecification is an abstract base class that is used to define the invariant characteristics and behavior (attributes, methods, constraints, and relationships) of a managed or unmanaged Resource.<br/>A ResourceSpecification might define common characteristics and behavior of Resources<br/> • Physical such as a handset<br/> • Logical such as an IP address, a software...<br/> • Composed of Logical and / or Physical such as a Box with its firmeware, a DSLAM...<br/>If you can pick up the entity, then it is a physical entity; if not, it is a logical entity.<br/>ResourceSpecification might be related to each other (ResourceSpecificationRelationship) with relationship type such as migration, substitution, dependency, or exclusivity.<br/>
