Figure Res.06 - Extending Roles to Include CompoundResourceRoles (OLD LR.53 & RL.50)

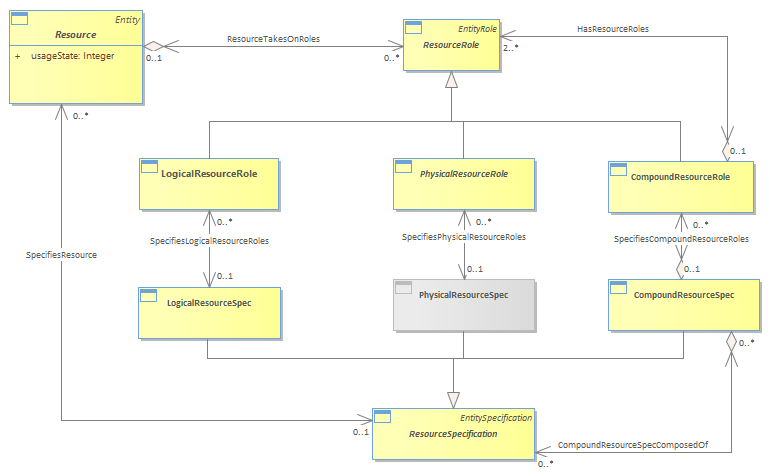

Figure Res.06 - Extending Roles to Include CompoundResourceRoles (OLD LR.53 & RL.50) : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	4/27/2022 12:01:29 PM
Project:
Author:	Giu Platania
Version:	22.0
Advanced:
ID:	{4EB18898-844B-47f8-A154-F1084BCDDEA4}

ResourceSpecification might be described by ResourceRoles that can be played by corresponding Resources.<br/>ResourceRole is sub-classed according to ResourceSpecification sub-classes.<br/>
