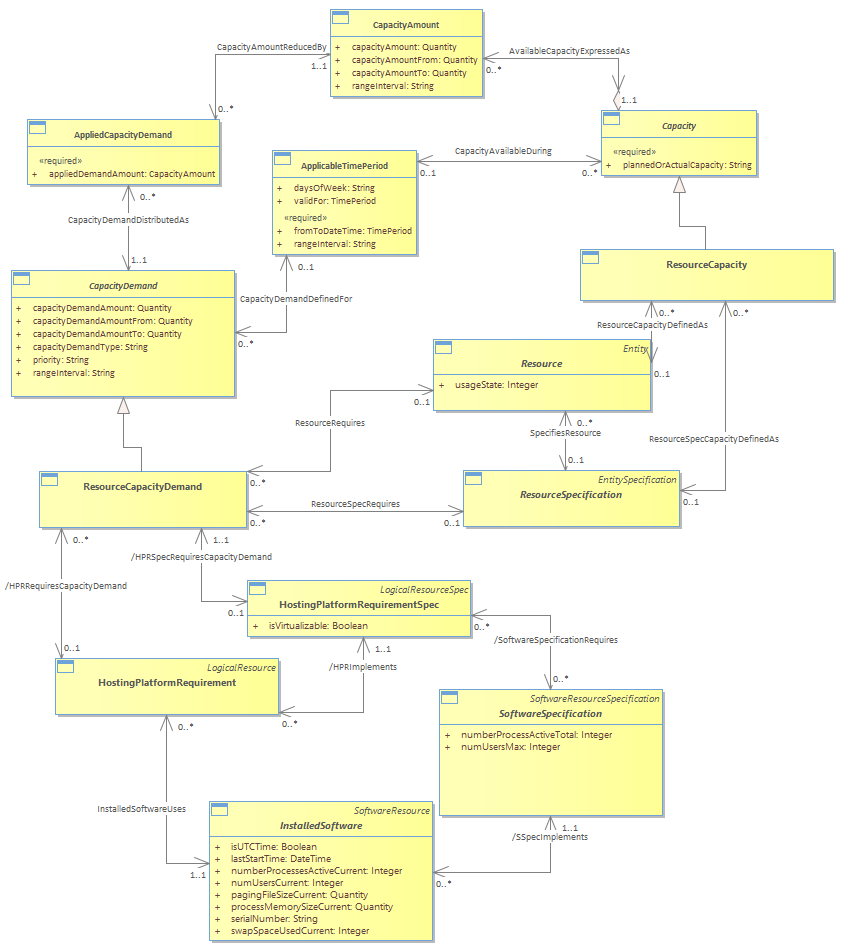

Figure Res.14 - Additional Capacity considerations (OLD RS.05) : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
5/27/2022 5:43:43 AM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{7DBC9AB6-42EE-4f77-87A5-9F8176D7FAB7} |
The ResourceCapacityDemand represents the amount of ResourceCapacity that is required, planned to be consumed or has been consumed.<br/>The HostingPlatformRequirementSpec requires a ResourceCapacityDemand that in this case specifies the amounts (minimum, maximum…) of capacity required.<br/>A HostingPlatformRequirement is the set of requirements defined by HostingPlatformRequirementSpec which applies to a specific InstalledSoftware. It requires a ResourceCapacityDemand that in this case specifies the amounts (minimum, maximum…) of capacity planned or consumed.<br/><i>Refer to Common Domain guide book for more explanations about the Capacity model.</i><br/>
