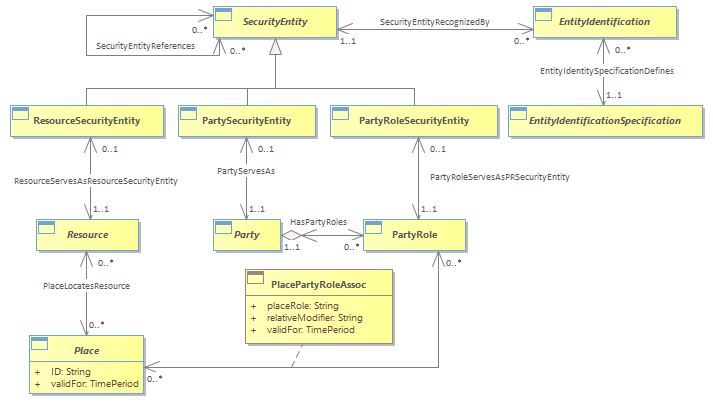

Figure SE.01 - Security Entity : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/13/2022 2:47:21 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{4CBB20B0-DA40-45c9-AEC1-743A1D1C4BCF} |
Examples of a Security Entity include devices, facilities, people, policies, circuits, networks, systems, and organizations. <br/>Some aspect of the asset model is envisioned to be used by all parties engaged in network defense. <br/>SecurityEntity has been sub-typed into three entities: <br/> • ResourceSecurityEntity, which recognizes physical assets like facilities, equipment, systems, etc., <br/> • PartySecurityEntity, which recognizes organizations, people, etc., and<br/> • PartyRoleSecurityEntity, which recognizes that a Party can have one or more roles. <br/>Following SID convention, a SecurityEntity, which is derived from Entity, has one or more identification (EntityIdentification).<br/>
