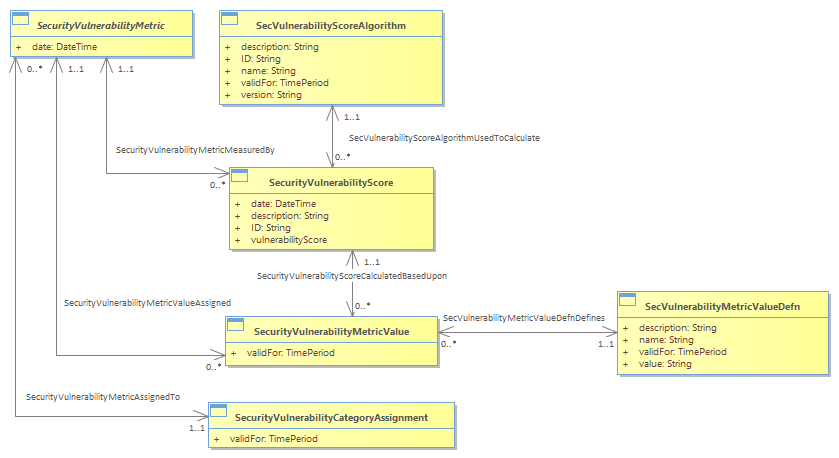

Figure SE.17d - Security Vulnerability Score

Figure SE.17d - Security Vulnerability Score : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/23/2022 5:42:16 PM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{C8D1803D-5DB4-44dd-9FB7-5F11337DAD7D}

The following Figure shows the entities used to calculate the score for a particular vulnerability. It uses the algorithm assigned to the particular vulnerability along with the values assigned to each of the metrics, and calculates the score.<br/>
