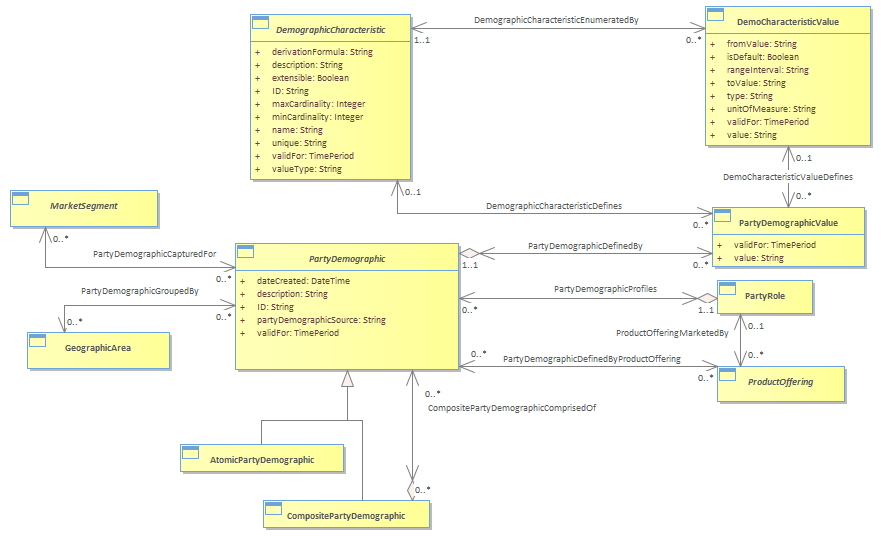

Figure P.13 - Party Demographics Business Entities : SID diagram
Created: |
4/12/2022 12:22:58 PM |
Modified: |
6/7/2022 7:54:47 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{F800268F-A97D-4caa-BCF7-57E230C27525} |
PartyDemographics characterize a single PartyRole. There was thought given to describing both PartyDemographics and PartyRoleDemographics. However, as was done with PartyRoleContacts, having demographics at both the Party and PartyRole seemed to be a bit of over-modeling. Therefore, if the same demographic characterizes two or more PartyRoles played by the same Party, the demographic is repeated for each role.<br/>PartyDemographics can also be defined in part by a ProductOffering that a Party has obtained and/or used. For example, the number of minutes of long distance used within a Calling Plan offering.<br/>PartyDemographics can also be grouped by GeographicArea and MarketSegment.<br/><br/>
