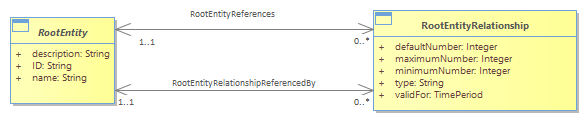

Figure R.01a - RootEntityRelationship : Class diagram
Created: 3/28/2022 3:51:09 PM
Modified: 6/6/2022 10:38:34 AM
Project:
Advanced:
The Information Framework employs “relationship” entities, such as ProductOfferingRelationship, to support different types of relationships between two entities. For example, one ProductOffering is an alternate for another.<br/>To generalize this capacity to all the RootEntity sub-classes and enhance its capacities, the RootEntityRelationship is introduced.<br/>A RootEntitiyRelationship describes a relationship between two instances of RootEntities. The type of relationship might be very different such as requires, incompatibility, equivalent…<br/>In addition, minimum, maximum and default numbers can be specified for the relationship. <br/>Each RootEntity might reference many relationships (RootEntityRelationship) but each relationship is referenced by only one RootEntity. <br/>
