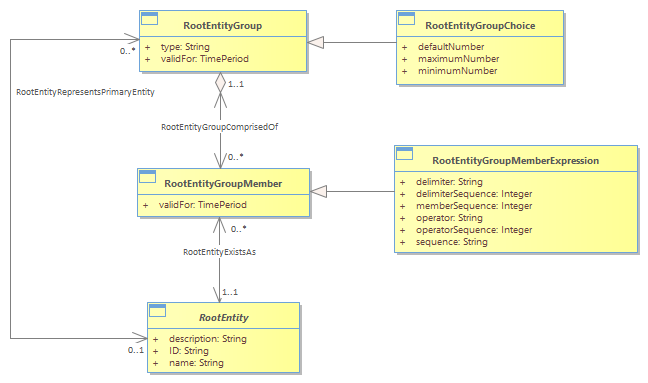

Figure R.01c - RootEntityGroup Relationship with Expression : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/8/2022 6:38:38 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{272BAA2D-1058-478c-8A65-DE5C786D51DF} |
Another way of describing complex relationships between groups of RootEntitiy’s instances is to use expressions.<br/>In this case we use the sub-class of RootEntityGroupChoice to carry attributes usually carried by RootEntityGroupRelationship (min, max and default) and theRootEntityGroupMemeberExpression sub-class for defining the expression.<br/>Like this you can specify mathematical expressions composed of variables (represented by the members), operators and delimiters.<br/>
