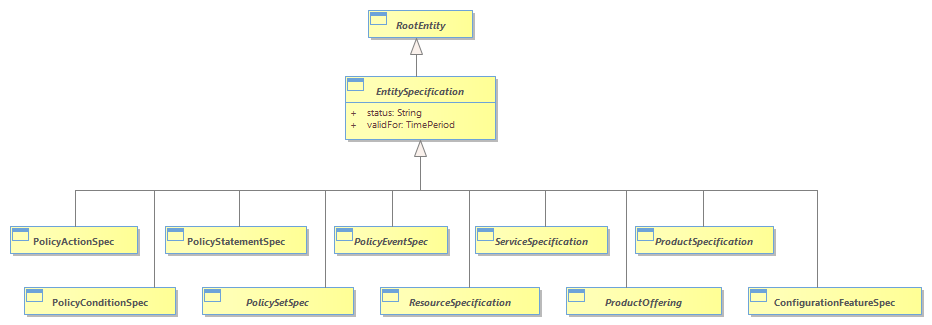

Figure R.05 - View of the EntitySpecification Class Hierarchy : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/6/2022 12:29:43 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{DBC668D9-68AA-4414-9D23-DC5BCA5C0709} |
This section describes the main EntitySpecification classes in the SID.<br/>An EntitySpecification is an abstract class that extends the RootEntity class in order to define shared characteristics for any type of specification entity. EntitySpecifications has many sub-classes. This is illustrated in Figure R.05 – View of the EntitySpecification Class Hierarchy below.<br/>
