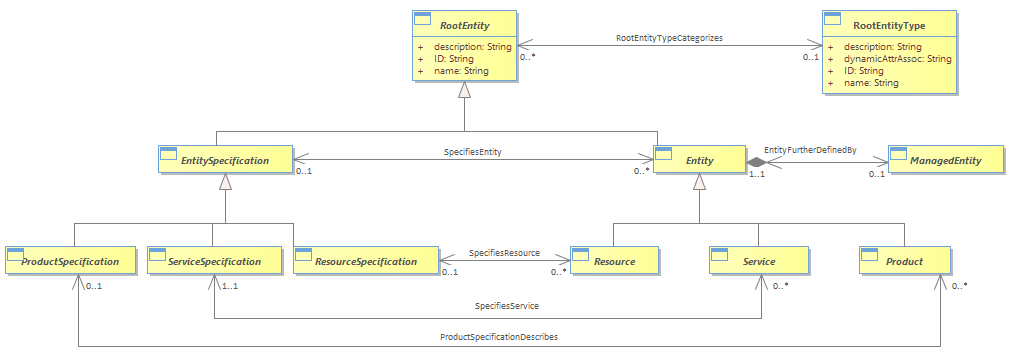

Figure R.08 - Interaction Between EntitySpecification and Entity Classes : Class diagram
| Created: | 3/28/2022 3:51:09 PM |
| Modified: | 6/8/2022 5:44:31 AM |
 Project: |
|
| Advanced: |
The relationships between the subclasses of EntitySpecification and Entity are shown in Figure below. <br/>The figure shows explicit associations between the specification entities and their respective entities. For example, ProductSpecification has an explicit association with Product.<br/>
