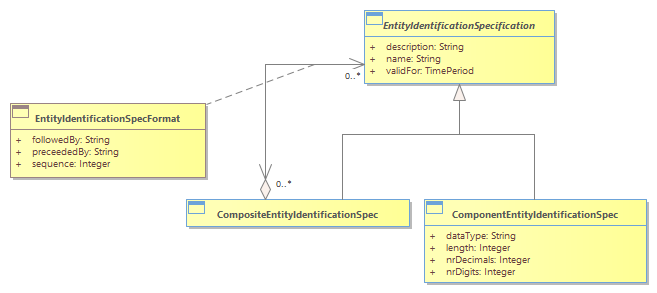

Figure R.17 - The EntityIdentificationSpecificationFormat Association Class : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/8/2022 5:58:52 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{15DDC704-05C9-4db3-A3FE-33F27C517C33} |
The component specification must be able to occur in a certain sequence to define the composite. And, they may be preceded and/or followed by certain characters. For example, the format of a phone number could contain dashes, such as 972-477-8401. Figure EI.05 – The EntityIdentificationSpecificationFormat Association Class below shows an association class added to hold the sequence in which the components appear in a composite object, along with its formatting attributes.<br/>
