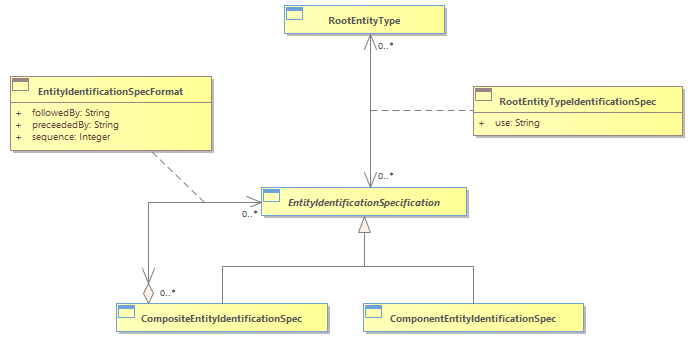

Figure R.20 - Use of an Entity Identification Specification : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/6/2022 6:58:19 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{8C8145C0-7609-4334-8D2F-F1CCEE4AA247} |
Two association classes are introduced in the Entity identification model as shown in Figure EI.08 – Use of an Entity Identification Specification below. The EntityIdentificationSpecFormat association class, which was first shown in Figure EI.07 – Identifying Entities Using the RootEntityType Entity above, is used to define the formatting and sequencing of EntityIdentificationSpec objects that are aggregated by a particular EntityIdentificationSpecComposite object. The RootEntityTypeIdentificationSpec association class, shown in Figure EI.08 – Use of an Entity Identification Specification below, is used to indicate, via its use attribute, whether the entity identification specification is used as the primary or as a secondary identifier.<br/>
