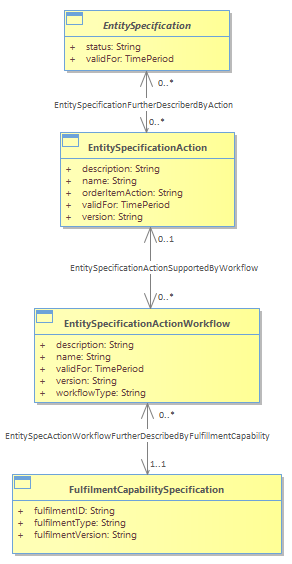

Figure R.43 - View of Entity Specification Action

Figure R.43 - View of Entity Specification Action : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/6/2022 9:56:33 PM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{C2E1FCE1-8A29-49bb-AC47-4854DF9979F8}

Entity Specification Action represents a logical grouping of classes that together support fulfillment of the associated entity. The following Figure shows the UML diagram of the objects in this fragment. EntitySpecificationAction This is the class representing an action like Add, Disconnect and Modify for an entity specification. EntitySpecificationActionWorkflow This is the class representing a workflow supporting an action for an entity specification.
