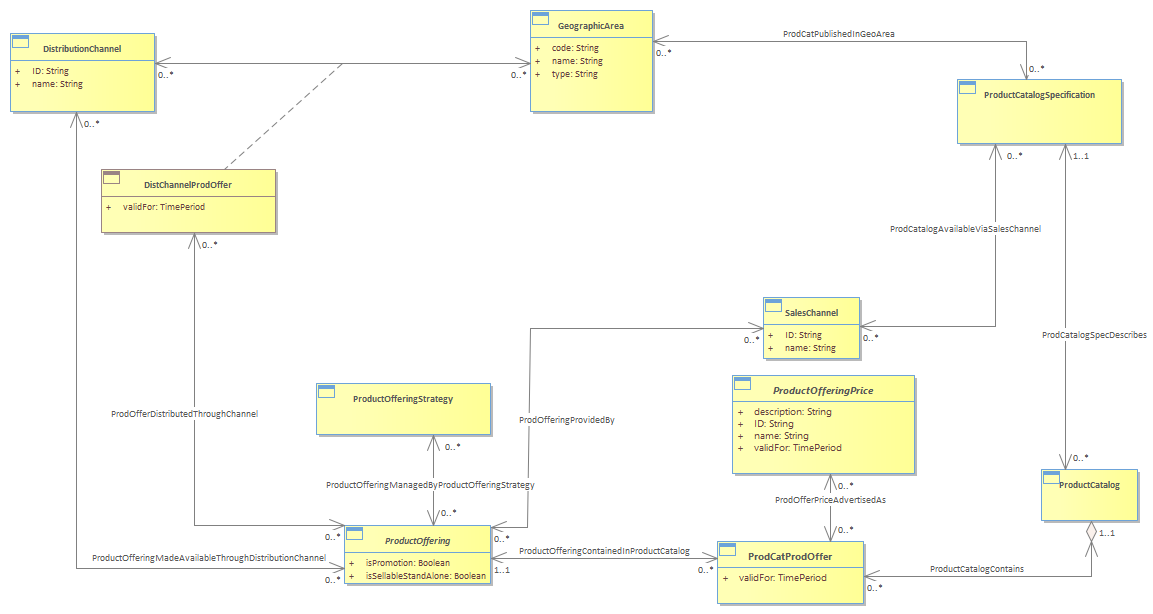

Figure Cat.04 – Product Catalog Entities and Associations

Figure Cat.04 – Product Catalog Entities and Associations : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/9/2022 8:23:07 AM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{D2B47922-60B3-4bc4-BF80-FB246811F15A}

Several additional entities complete the Product Catalog. A DistributionChannel is responsible for providing ProductOfferings in a specific GeographicArea. Each ProductOffering is managed under a ProductOfferingStrategy that supports any number of MarketingCampaigns. MarketingCampaigns are run through SalesChannels, and use ProductCatalogs selected by ProductCatalogSpecification. These entities are shown in the following Figure.<br/>
