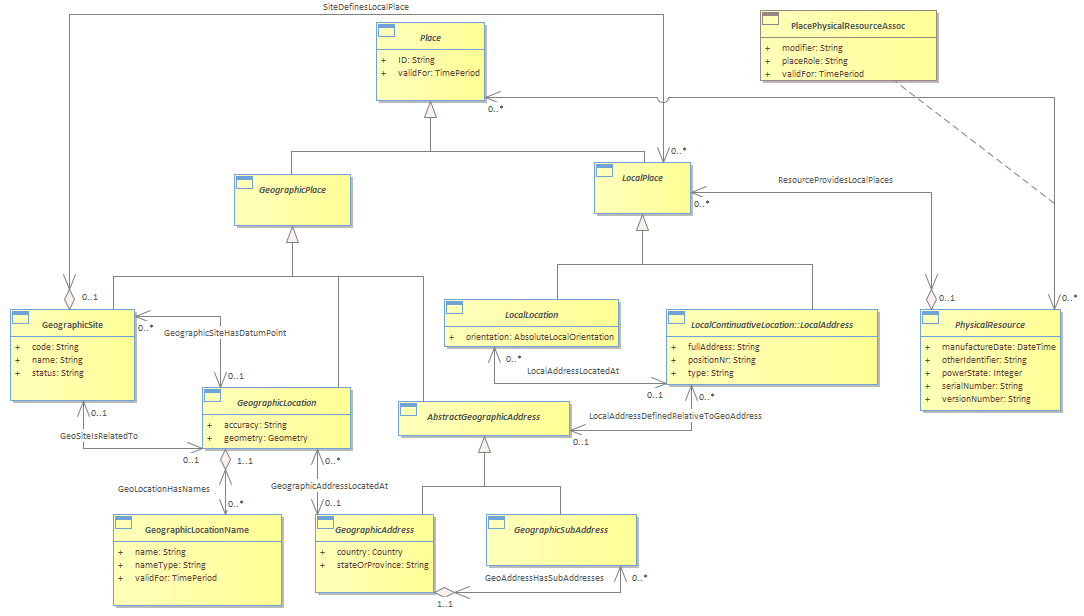

Figure L.08 - Place, Geographic Location, Address & Site : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 12:17:21 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{D27AA46D-DD5B-49e8-8210-996F65E820F4} |
The following Figure summarizes main entities concerning Place, Geographic Location, Address & Site.<br/>This model allows for changes in location detail over time. A Service Provider may start by having external address or Geographic Location information. Then other information, including Local information, can be added later as required (refer example 1).<br/>
