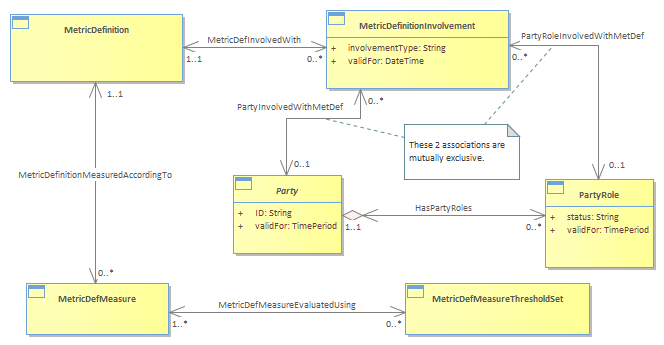

Figure Me.05 - Metric Definition Involvement : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 2:18:10 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{46FAEC2D-AFFD-42e1-94FC-866F38789899} |
Many different parties can be involved with the definition of a metric. Figure Me.05 – Metric Definition Involvement shows the part of the model that represents this involvement.<br/>A Party independent of the role they play can be involved or a role played by a party (PartyRole) can be involved.<br/>The involvementType attribute of MetricDefinitionInvolvement specifies the type of involvement, such as the source, user, owner, defining authority of the MetricDefinition.<br/>
