Figure Me.09 - Metric Measure Notification definition : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 2:59:25 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{8D0E62F5-8E64-4ed1-8A3A-1165CEB64A32} |

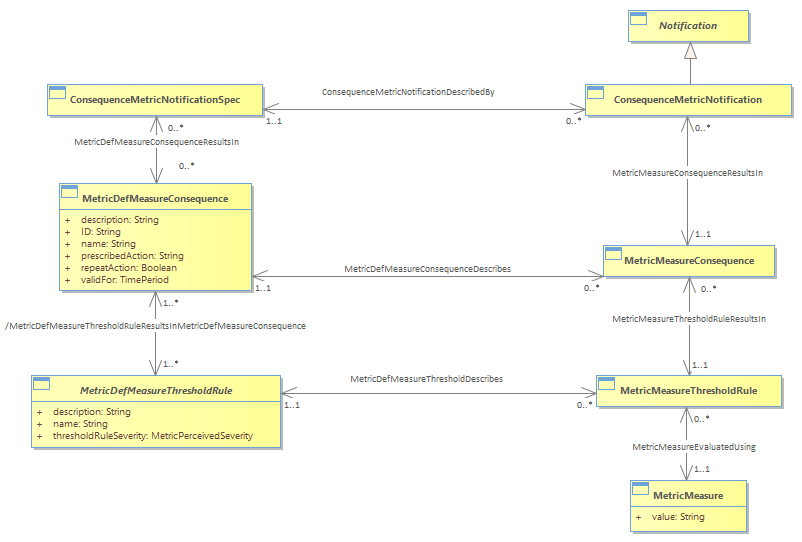

Different kinds of consequences may be applied as a consequence of threshold. The following Figure shows how to describe notification consequences.<br/>A MetricDefMeasureConsequence either results in a prescribed action (prescribedAction) or one or more ConsequenceMetricNotificationSpecs.<br/>If a MetricMeasureConsequence is triggered by a MetricMeasure (through a MetricMeasureThresholfRule) according to a MetricDefMeasureConsequence and the MetricDefMeasureConsequence results in ConsequenceMetricNotificationSpecs, then a ConsequenceMetricNotification is created for each of them.<br/>A ConsequenceMetricConsequence is a type of ConsequenceMetricNotification, which in turn is a type of Notification.<br/>A ConsequenceMetricNotification is described by a ConsequenceMetricNotificationSpec.<br/><i>Note: To be consistent with the pattern Specifcation used for ConsequenceMetricNotificationSpec / ConsequenceMetricNotification, a NotificationSpecification should exist in the Business Interaction ABE. This concept would specify the content pattern for each corresponding notification.</i><br/>
