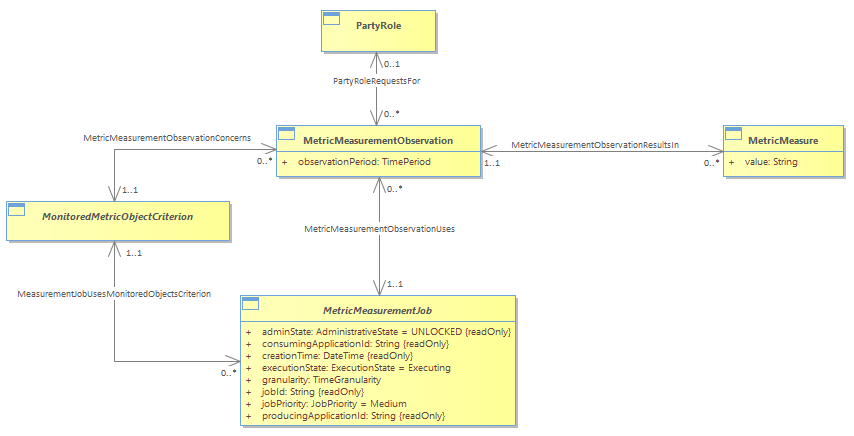

Figure Me.18 - Metric Observation : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 3:24:03 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{BA07F775-2FD3-4be0-99FA-D4FF8647AF7A} |
A MetricMeasurementJob might be triggered by the schedule or might be triggered by a request from a PartyRole.<br/>In both cases, a MetricMeasurementObservation tracks each measurement (i.e. execution of a MetricMeasurementJob).<br/>A MetricMeasurementObservation represents the contextual information of a measurement such as the observation period, the MetricMeasurementJob used, the requester of the observation (PartyRole) and the scope of the observation through the related MonitoredMetricObjectCriteria.<br/>The MonitoredMetricObjectCriteria related to MetricMeasurementObservation has to be equal to or a sub-set of the one related to the concerned MetricMeasurementJob.<br/>A MetricMeasurementObservation also specifies the MectricMeasures resulting from this observation.<br/>
