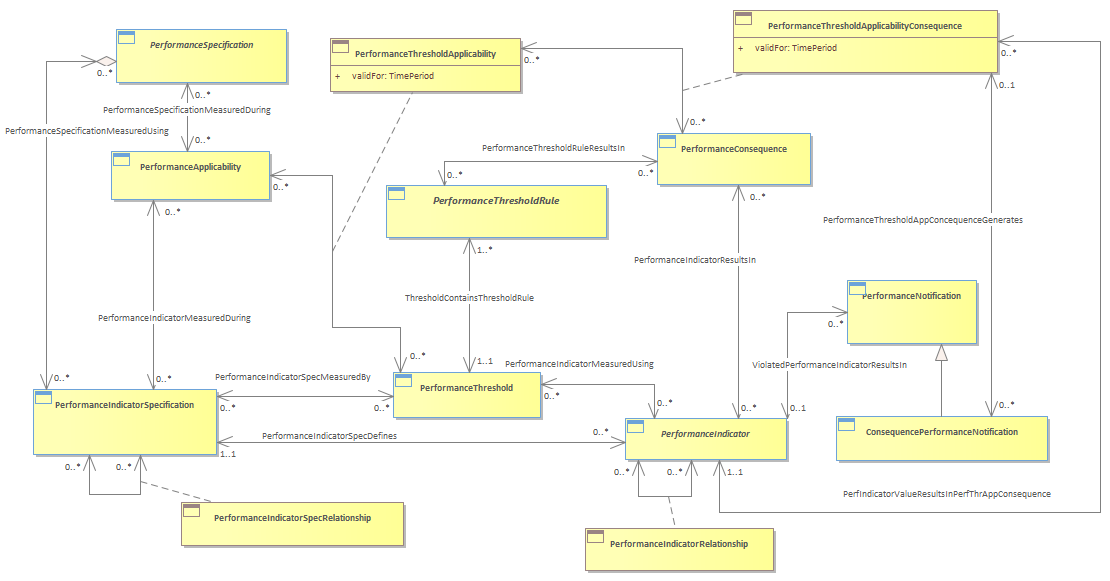

Figure PF.07 - Performance - Applicability : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 11:26:56 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{02D6DCE2-F0B2-456f-8503-8566BA4397FC} |
Performance in general, indicators, thresholds, and consequences may apply a certain times or not apply during certain times. A set of performance entities, PerformanceApplicability, PerformanceThresholdApplicability, PerformanceThresholdApplicablityConsequence, controls applicability as shown in following Figure. For example, an instance of a PerformanceThreshold may apply to only to peak usage ours of 8AM – 5PM; or a PerformanceConsequence for an instance of PerformanceThreshold may only apply on the weekends.<br/>
