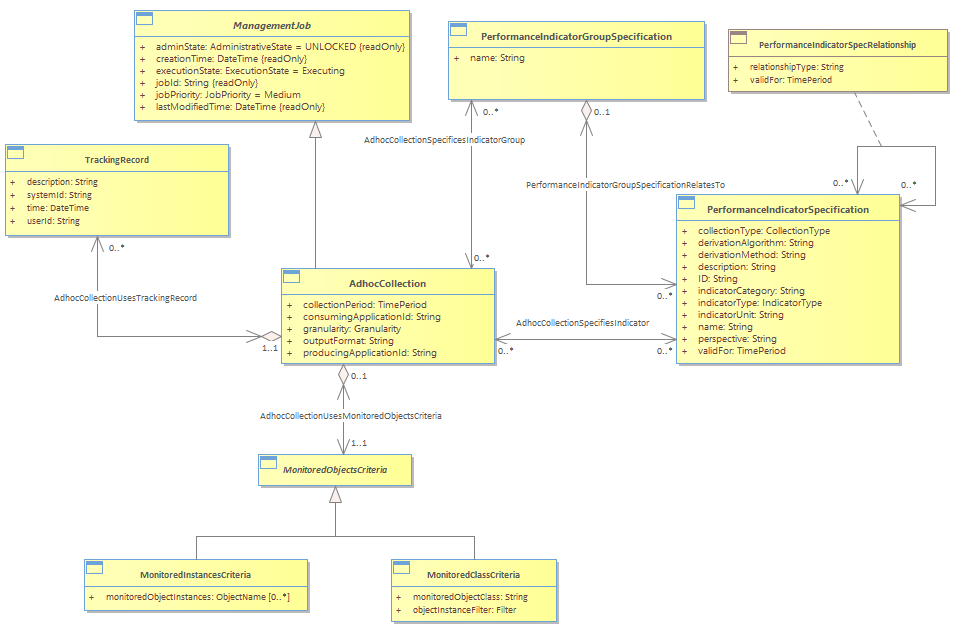

Figure PF.17 - Performance Adhoc Collection : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 11:47:35 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{210674C9-404C-4e4b-8005-F98D53BFEEBF} |
Ad-hoc collection is an on-demand collection method of Performance measurements results from a consuming application, requesting spontaneously a set of data for a set of network or service testing resources for a given temporal context. As the ad-hoc query is a single isolated request, its lifecycle is much simpler and isolated, having a request-response nature.<br/>The parameters of the PM data request are very similar to the parameters of the measurement job; the main difference is related to the administration of the request. Ad-hoc collection is shown in figure below.<br/>
