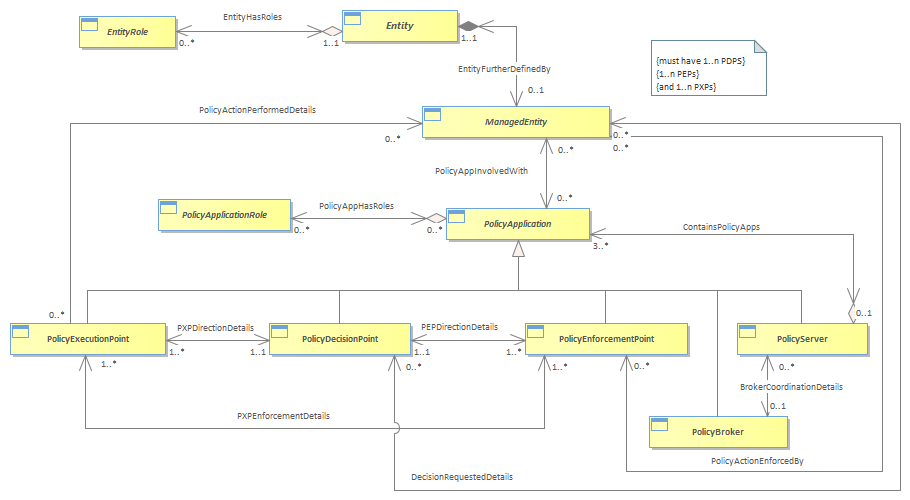

Figure 1P-28 - PolicyApp Roles : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 4:35:31 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{C2284029-6ED4-4205-86B9-D3641611F9B0} |
Following Figure shows a combined view of the PolicyApplication entity, its main subclasses, and important relationships involving them. This is a convenient place to define roles that facilitate defining interactions between policy entities and the rest of the managed environment.<br/>
