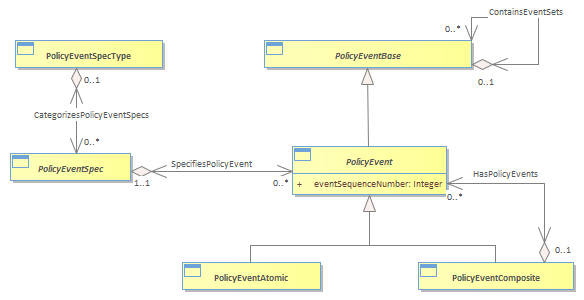

Figure 1P-32 - PolicyEventType : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 4:44:27 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{FF615211-6F49-44cc-B166-B1A8C78F9DAE} |
There are multiple types of PolicyEvents. These may be categorized according to their type, which is shown in Figure below.<br/>The PolicyEventSpecType class defines a generic category of PolicyEventSpecs. Each PolicyEventSpecType serves to group a set of particular PolicyEventSpecs that share the same behavior and other semantics. One result of this is to be able to more efficiently define a set of related PolicyEventSpecs that can be grouped together to form a higher-level, or composite, PolicyEventSpec.<br/>
