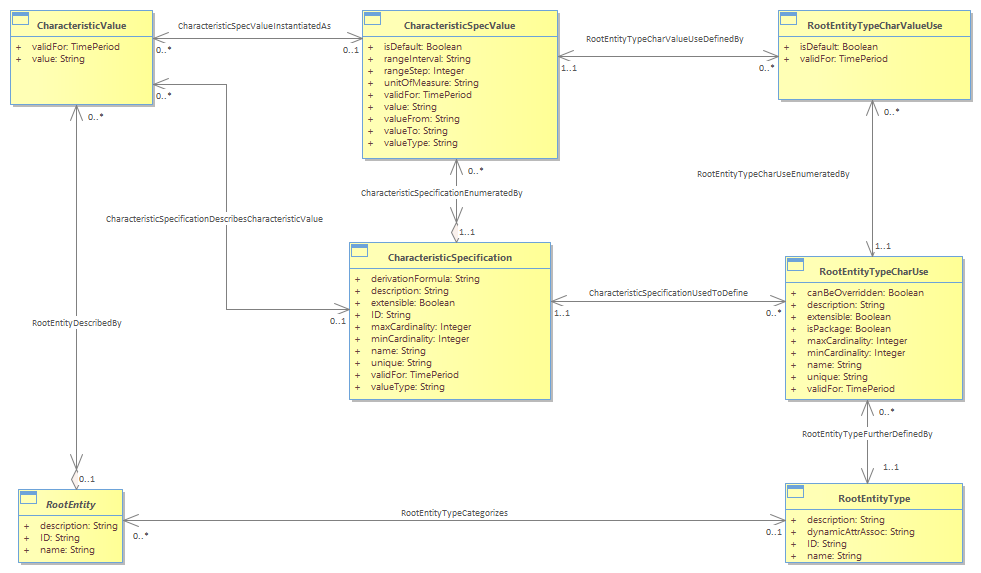

Figure Ppr.01 - Reminder about RootEntityType and RootEntity : SID diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 9:14:22 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{1BD91DB0-38B4-4a01-A943-9593E88A12A0} |
The Party Privacy Management process manages privacy information and agreement with party.<br/>Therefore, it needs to specify the information concerned by Privacy rules and the Privacy rules themselves.<br/><br/>The following Figure depicts how all information of the SID model might be addressed.<br/>Each SID Entity corresponds to an instance of RootEntityType and each attribute of an Entity corresponds to the use (RootEntityTypeCharUse) of a CharacteristicSpecification.<br/>Each possible value of a CharacteristicSpecification (CharacteristicSpecValue) might be used or not in the context of a RootEntityType (RootEntityTypeCharValueUse).<br/>Each instance of a SID Entity corresponds to an instance of RootEntity and the value of its attributes are carried by an instance of CharacteristicValue.<br/>
