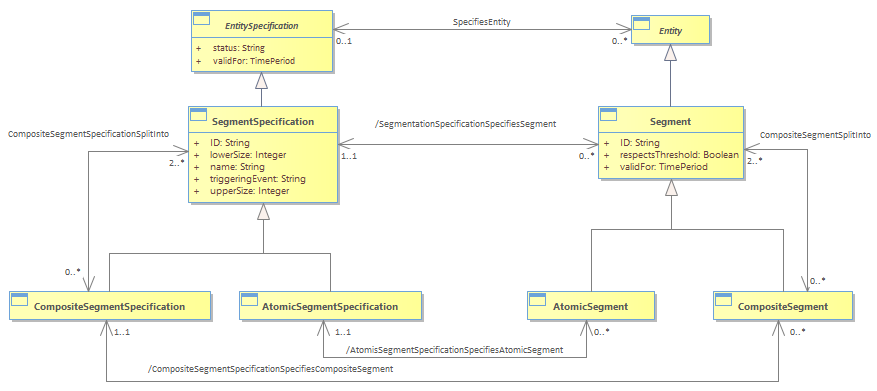

Figure Sgt.04 - Sub-Segments : Class diagram
Created: |
4/8/2022 12:00:00 AM |
Modified: |
6/8/2022 9:45:13 AM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{E0B26458-F181-421b-B2C3-68CC912BBEAF} |
A Segmentation might be decomposed as Segments each of them being a combination of Conditions (combined with AND or OR). These Segments are specified thanks to the SegmentSpecification.<br/>Segmentation might be defined so that segments might be disjoined or not, continuous or discontinuous.<br/>For example, the market segmentation contains several segmentations Pan European, Sub-Saharan Africa…, each of them being decomposed as combined conditions (Ex: Pan European Segmentation decomposed as Mobile reluctant, Basic Communicators, Pragmatics…segments).<br/>The size of the calculated Segment corresponding to a SegmentationSpecification might be limited by a lower and upper size.<br/>A SegmentSpecification might be composite. In this case, each SegmentSpecification composed refine the criteria specified at the CompositeSegmentSpecification level.<br/>A CompositeSegment corresponds to the sum of the composed Segments.<br/>
