Figure BI.04 - Business Interaction Version : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/8/2022 8:22:57 PM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{B97231E9-F505-4ada-8467-01FC39ABAF26} |

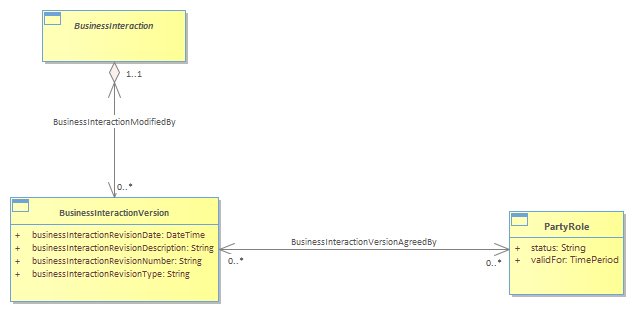

More than one version of a business interaction may exist during the interaction’s life. This is an important facet of an interaction. The figure below depicts a minimalist approach for handling interaction versions. The different versions can be linked together using the BusinessInteractionRelationship entity. Much more elaborate versioning models can be developed as needed by a user of the SID model. The figure below shows the minimalist approach to business interaction versions.<br/>
