Figure BI.14 - DisputedAmountActivity Entities Representing the DisputedAmount Life Cycle

Figure BI.14 - DisputedAmountActivity Entities Representing the DisputedAmount Life Cycle : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	6/8/2022 9:24:13 PM
Project:
Author:	broth
Version:	22.0
Advanced:
ID:	{AD84550F-56D2-4fa9-9672-7B4E02386E67}

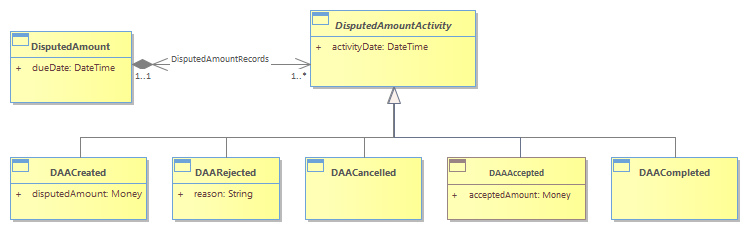

Note: Supplier/Partner dispute is not included here since it is not modeled in the Information Framework yet. This is a candidate for future improvement of this model. The modeling of the DisputedAmount state is depicted in the following diagram. Since UML does not support lifecycle modeling directly the states are modeled as subclasses of DisputedAmountActivity, which are contained by DisputedAmount.
