Figure An.01 - Anomaly ABE : SID diagram
Created: |
5/9/2022 3:18:16 PM |
Modified: |
6/8/2022 8:15:40 PM |
Project: |
|
Author: |
Kevin Scaggs |
Version: |
1.0 |
Advanced: |
|
ID: |
{C359E614-6299-4f08-8B85-CB9FD013CE76} |

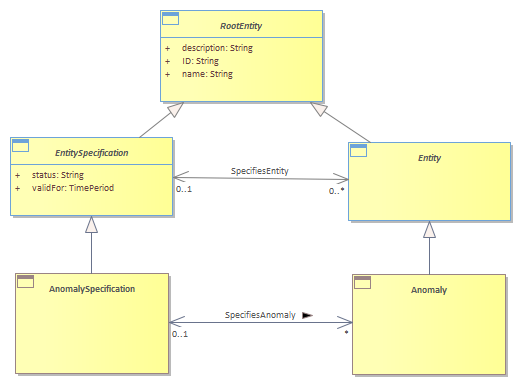

The Anomaly ABE model employs the commonly used SID EntitySpecification/Entity pattern. Conceptually, an Anomaly Specification defines the invariant attributes and relationships for defining a set of Anomalies. An Anomaly uses these invariant characteristics and behaviors and adds instance-specific characteristics and behaviors to them such that, by building from a base of standard capabilities, it becomes possible to create unique Anomalies.<br/>The figure below shows the relationship between an AnomalySpecification and an Anamoly.<br/>
