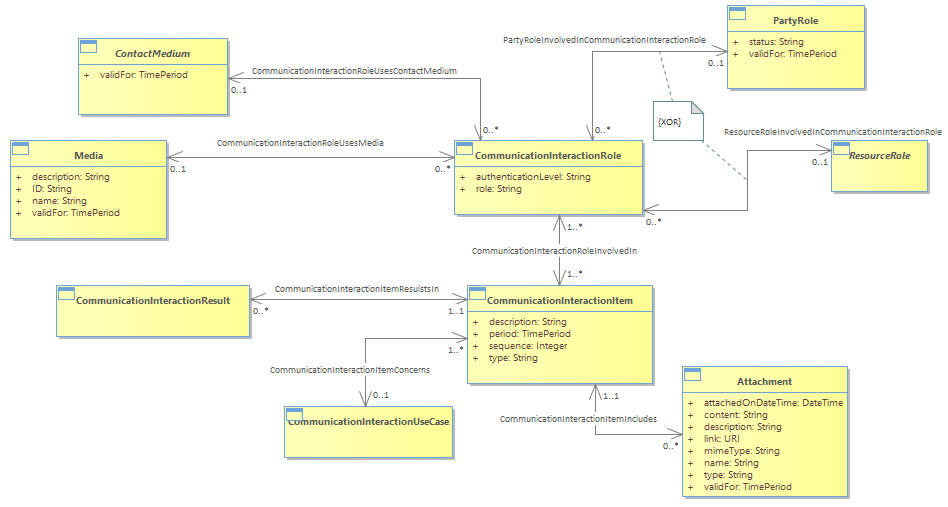

Figure CI.02 - CommunicationInteractionItem overview : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/9/2022 8:39:10 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{67AC1949-616A-4591-93C6-DD29EC805452} |
A CommunicationInteractionItem is the smallest entity in a CommunicationInteraction tree.<br/>It concerns a unique CommunicationInteractionUseCase and involves the same CommunicationInteractionRoles from the beginning to the end of it.<br/>A CommunicationInteractionItem might have one or many CommunicationResult such as “create a CustomerOrder” and “notify the CustomerOrder”.<br/>A CommunicationInteractionItem might have related Attachment such as the recorded conversation or embedded document in an email.<br/>A CommunicationInteractionItem cannot be contained in more than one CommunicationInteraction.<br/>A CommunicationInteractionRole is either a PartyRole or a ResourceRole involved in a CommunicationInteractionItem.<br/>There might be one to many CommunicationInteractionRoles involved in a CommunicationInteractionItem.<br/> • 1 CommunicationInteractionRole if the interaction corresponds to a communication through Media<br/> • 2 CommunicationInteractionRoles for simple interactions between Parties and / or Resources<br/> • more than 2 CommunicationInteractionRoles when all the parties interact in the same Place (ex: face-to-face training, face-to-face marketing presentation) or through the same ContactMedium (ex: conference call)<br/>
