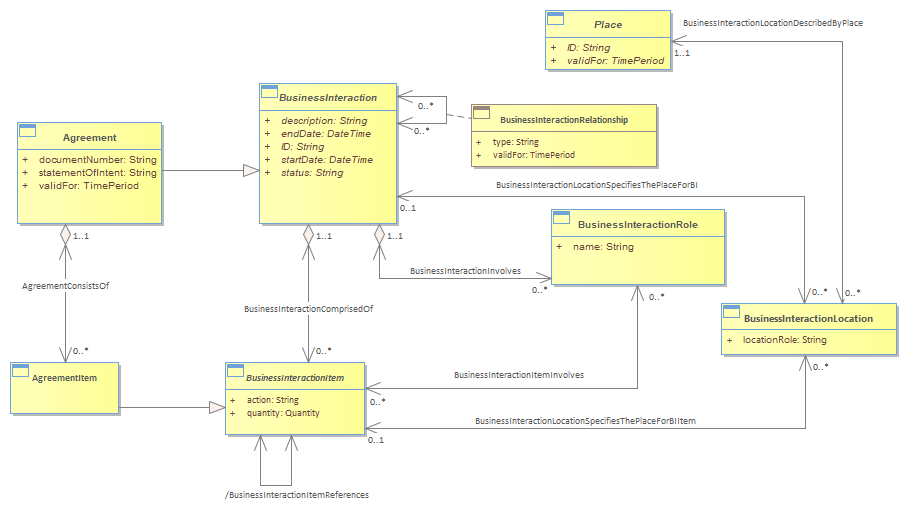

Figure A.01 - Agreement Business Entity and Its Inherited Associations : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/7/2022 9:40:40 PM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{B25BA9D0-F744-40fc-8E23-7FE54E6B5C58} |
One form of business interaction in which Parties (for example, Service Providers or Customers) engage is an agreement. An agreement is a contract or arrangement, either written or verbal and sometimes enforceable by law, such as a service level agreement or a customer price agreement. An agreement involves a number of other business entities, such as Products, Services, and/or Resources. This can also extend to Product, Resource, and/or Service specifications. In the SID model an agreement is a subclass (type) of BusinessInteraction. A resulting benefit is that an agreement inherits a number of informational characteristics from business interaction in the model.<br/>The inherited business characteristics of an Agreement (class) include:<br/><ul>
<li>Associations with Products, Service, and/or Resources (as well as with their specifications) involved in agreement items (not shown in the figure below)</li><li>Association with business participants (Parties, Roles and Resources) that engage in Agreements</li><li>Associations with locations (Locations)</li><li>Associations with other BusinessInteractions, such as Requests, Responses, and Notifications.</li></ul>
Details about BusinessInteractions can be found in Business Interaction paragraph. This addendum, focuses on the informational characteristics that are unique to an Agreement.<br/>An Agreement possesses a number of attributes and relationships that are unique to it. The figure below shows the attributes unique to an Agreement. The remainder of this overview provides a glimpse of the relationships and other business entities that make up the aggregate business entity Agreement.<br/>
