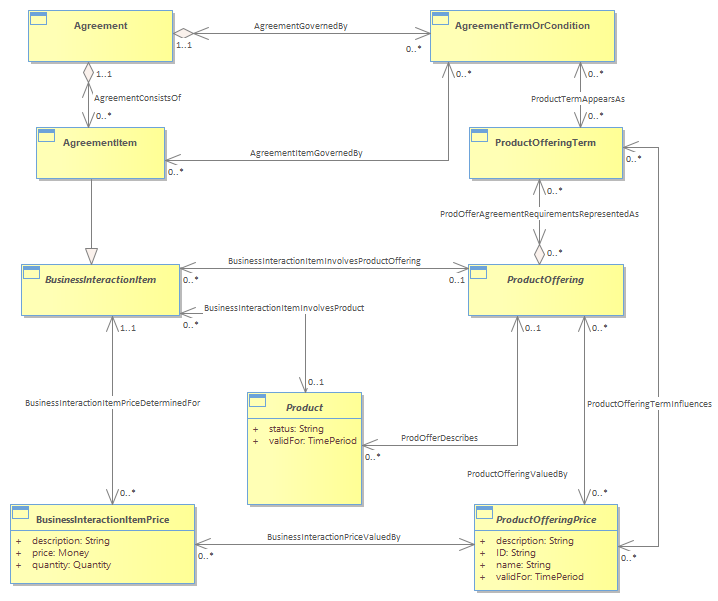

Figure A.05 - Agreement Item and Its Related Entities : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/8/2022 8:03:01 AM |
Project: |
|
Author: |
Giu Platania |
Version: |
22.0 |
Advanced: |
|
ID: |
{76C32FF5-B1C0-49c0-B9DB-36A4E6E589DB} |
Agreements can involve a number of Products, Services, and/or Resources, as well as their specifications. For example, an order from a new customer may specify a number of desired ProductOfferings; a ServiceLevelAgreement may specify the Services covered by the Agreement. <br/>Items on an Agreement may also be characterized by one or many prices. The price may be a one-off price or a price associated to a ProductOffering (in the case of an order for a Product). The figure below shows how terms and conditions of an Agreement, along with a price, can be related to an AgreementItem and an Agreement.<br/>
