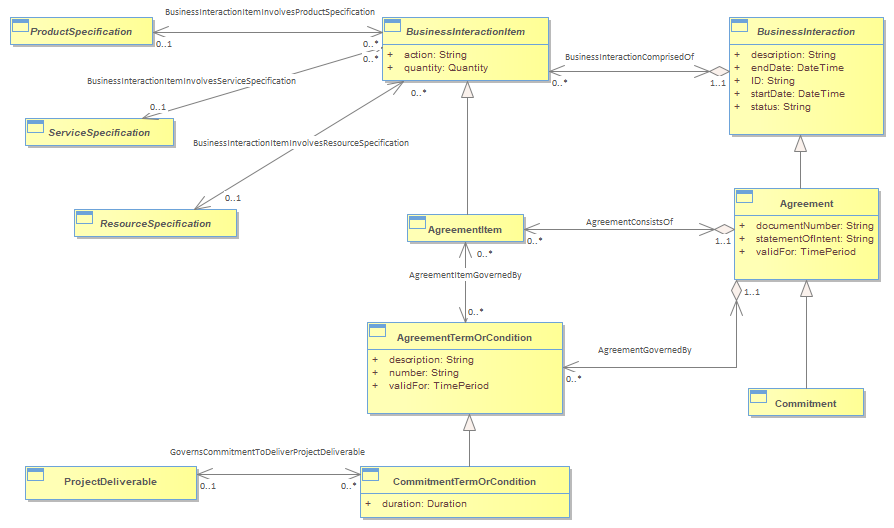

Figure A.10 - Commitment Deliverables : Class diagram
Created: |
3/28/2022 3:51:09 PM |
Modified: |
6/8/2022 8:26:25 AM |
Project: |
|
Author: |
broth |
Version: |
22.0 |
Advanced: |
|
ID: |
{84B6DF27-CE0C-4e93-8431-A8C7CA1D1591} |
As mentioned earlier, Commitment can be associated with a concrete deliverable. <br/>Commitment inherits from Agreement which inherits from BusinessInteraction. Therefore, Commitment inherits the association to BusinessInteractionItem which is related to ProductSpecification, ServiceSpecification, and ResourceSpecification. <br/>So if the supplier/partner is obligated to provide a product, service or resource, the Commitment is associated to the corresponding specification.<br/>If any other kind of project deliverable is the Commitment of a supplier/partner this can be modeled CommitmentTermOrCondition, which inherits from AgreementTermOrCondition. CommitmentTermOrCondition is associated to ProjectDeliverable, defined in the Project ABE.<br/>
