Figure RO.07 - Resource Number Portability into Resource Order Entities

MODA / Information Framework / Business Entity / Resource Domain / Resource Order ABE / Figure RO.07 - Resource Number Portability into Resource Order Entities

Project:

Resource Number Portability ABE
Resource Number Portability Role ABE
Figure RO.01 - Resource Order Entities
Figure RO.02 - Relationships Inherited From Business Interaction
Figure RO.03 - Relationships Inherited From BI Item
Figure RO.05 - Resource Number - Number Portability Policy
Figure RO.06 - Resource Number - Number Portability Roles
Figure RO.06a - Resource Number Portability Relationships (OLD RO.04)
Figure RO.07 - Resource Number Portability into Resource Order Entities
ResourceOrder
ResourceOrderItem

Figure RO.07 - Resource Number Portability into Resource Order Entities : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	10/7/2023 6:57:52 AM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{963B41C4-8104-42a8-8556-F55DF027802A}

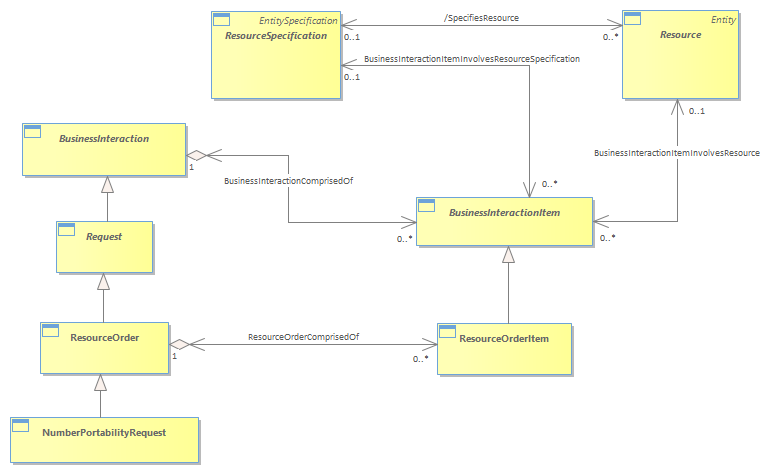

Another part to have in consideration is that NumberPortabilityRequest is a sub-class of the existing ResourceOrder. This entity is a sub-class itself of Request, which is a sub-class of BusinessInteraction. This last entity forms an aggregation with the BusinessInteractionItem creating the flow for the order of the requests entries for number portability, recognizing it through the attribute BusinessInteractionType. The following image shows this communication:<br/>
