Figure Act.02 - Detailed Activity

Header Image

MODA / Information Framework / Business Entity / Patterns Domain / Project ABE / Activity ABE / Figure Act.02 - Detailed Activity

Project:
Figure Act.02 - Detailed Activity : SID diagram
Created: 8/11/2022 8:01:33 AM
Modified: 12/6/2023 10:02:34 AM
Project:
Advanced:

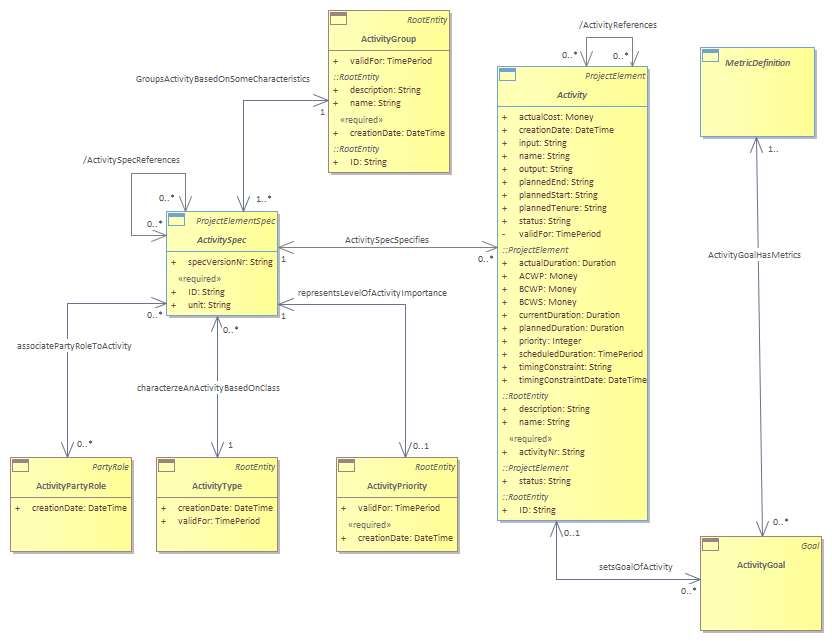

Following is a more detailed view of the Activity business entity and related business entities such as ActivtyType, ActivityPriority, ActivityGroup, and ActivityGoal. <br/>
