Figure CM.10 – Capacity Dependencies Example : Object diagram

Created:	5/3/2022 1:48:10 PM
Modified:	5/3/2022 1:48:27 PM
Project:
Author:	Giu Platania
Version:	1.0.0
Advanced:
ID:	{F42383A7-3719-4dad-877C-262E348647C3}

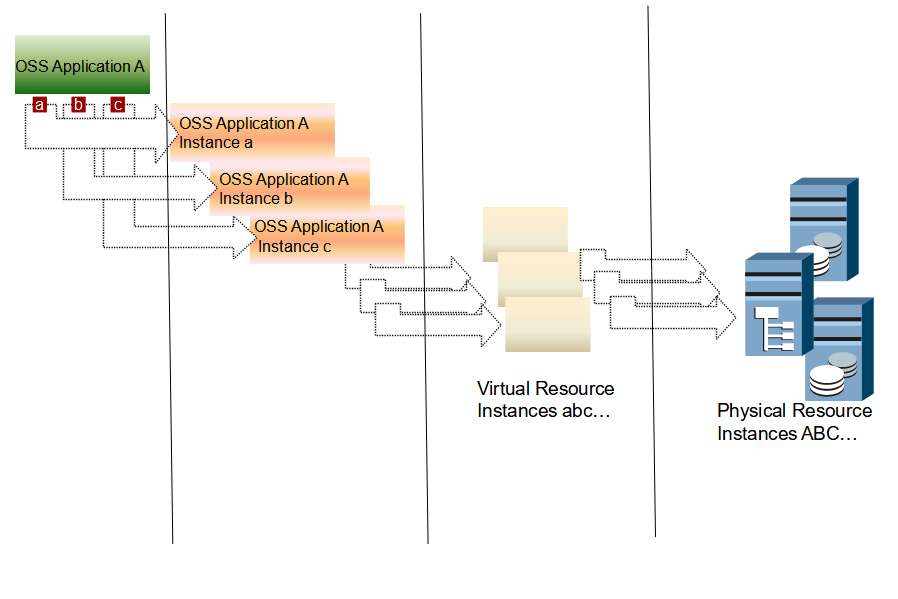

<font color="#29313b">An example of dependencies is show in the following Figure. The capacity/demand relationships between resources would be used to determine the demand placed on the virtual resources by the three instances of Application A. And the relationships would then be used determine the demand placed on the physical resources by the virtual resources. This information is what could be used in part to support the policy-based load balancing described in the first example of this section.</font><br/>
