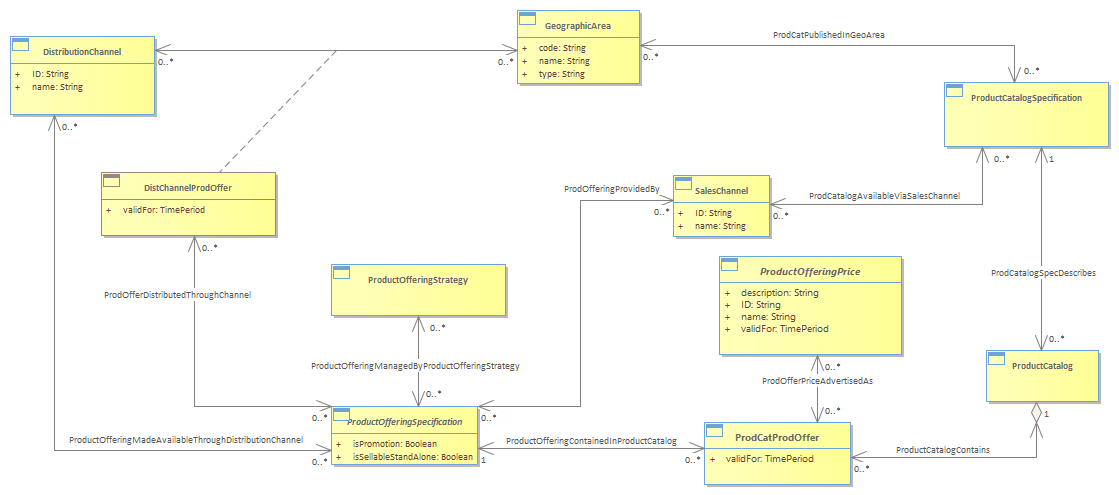

Figure Cat.04 – Product Catalog Entities and Associations
|
Project:
|
Figure Cat.04 – Product Catalog Entities and Associations : Class diagram
Several additional entities complete the Product Catalog. A DistributionChannel is responsible for providing ProductOfferings in a specific GeographicArea. Each ProductOffering is managed under a ProductOfferingStrategy that supports any number of MarketingCampaigns. MarketingCampaigns are run through SalesChannels, and use ProductCatalogs selected by ProductCatalogSpecification. These entities are shown in the following Figure.<br/>
|
