Figure PPSO.00 - Key Product Domain Business Entities : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	12/30/2024 6:13:02 AM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{3F5FC94E-05C6-44a5-B9ED-EED58F262E22}

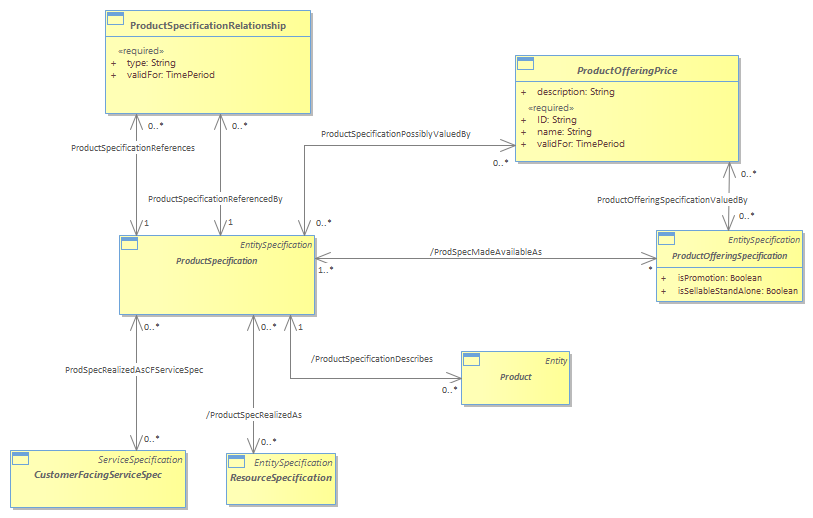

The following Figure shows the current model. Associations from them to entities in Party Product Specification and Offering ABEs have been added. The new ABEs and associations to existing entities will be shown later in this document.<br/>
