Figure P.34 - Party Settlement Payment : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	12/2/2023 6:16:55 AM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{9F9CAF02-13CE-4aaa-9798-2950777F28B8}

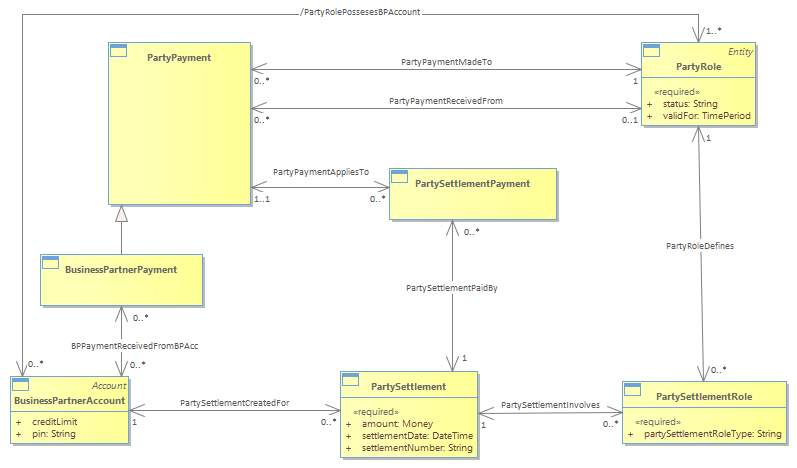

PartySettlement is paid by PartySettlementPayment which links to a more general entity PartyPayment.<br/>PartyPayment is received from and made to PartyRoles.<br/>The following figure shows the PartySettlement Payment model.<br/>
