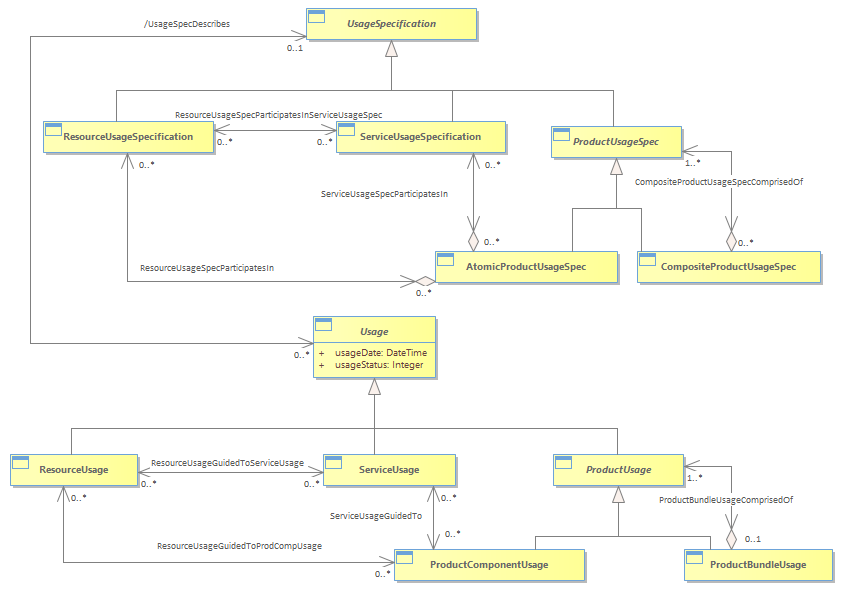

Figure U.06 - Product Usage, Part 2 : Class diagram

Created:	3/28/2022 3:51:09 PM
Modified:	12/25/2024 6:49:14 AM
Project:
Author:	broth
Version:	1.0.0
Advanced:
ID:	{A83E82E1-823D-44ff-8536-111C37000332}

As mentioned above, a product is realized as one or more services and/or resources. Consequently, the ProductUsageSpec business entity has to be associated with the ResourceUsageSpec and the ServiceUsageSpec business entities. The ProductUsage, the ServiceUsage and the ResourceUsage business entities have to reflect these associations as well. The ProductComponentUsage can be associated with either ServiceUsage or ResourceUsage and included in a ProductBundleUsage. These entities and associations are shown on the Figure bellow.<br/>
