Figure AnMP.03 - AnomalyManagement Plan Entity Associations : SID diagram
Created:
3/13/2024 10:11:03 AM
Modified:
5/30/2024 6:27:05 AM
Project:
Author:
Kevin Scaggs
Version:
1.0
Advanced:
ID:
{7BADE8E1-3BA6-4357-BE6A-2D6ACC102C03}

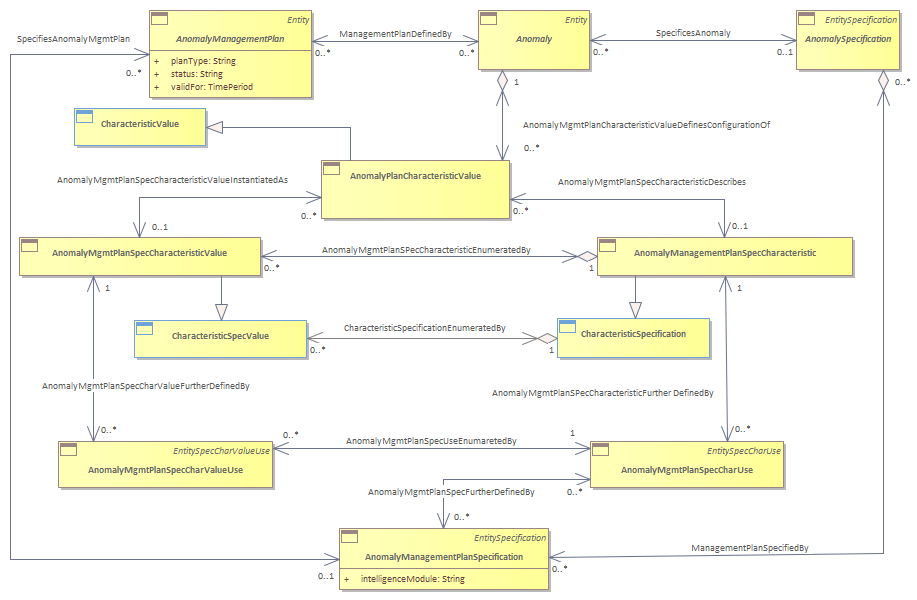

The following figure shows the relationship between AnomalyManagementPlan, AnomalyManagementPlanSpecification with Anomaly and AnomalySpecification respectively. <br/><br/>AnomalyManagementPlan and AnomalyManagementPlanSpecification makes use of the same characteristic pattern as does other Anomaly entities. <br/>
