Figure BR.03 - Business Rule Action

Header Image
Project:

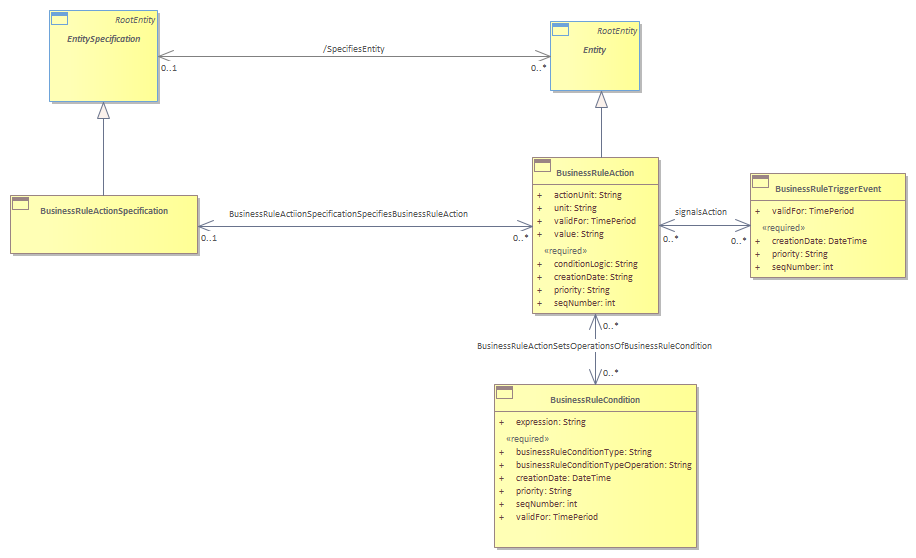

Figure BR.03 - Business Rule Action : SID diagram
Created: 4/2/2024 7:51:08 AM
Modified: 5/14/2024 7:20:10 AM
Project:
Advanced:
Business Rule Action represents the executable component of a business rule, defining the operations that should be carried out when certain conditions are met. It is closely linked to the ‘Business Rule Condition’ class, as actions are contingent upon the evaluation of conditions. The class also has a relationship with the ‘Business Rule Trigger Event’ class, indicating that actions can be initiated by specific events (within a system). Business Rule Action plays a critical role in the operational aspect of business rules, translating conditions and events into tangible outcomes.<br/>In the broader context of this figure, the ‘Business Rule Action’ class is part of a complex network that includes specifications, constraints, and trigger events. This figure is meant to illustrate the interaction with immediate classes that support business rule management. Actions defined in the Business Rule class can be further detailed in the ‘Business Rule Action Specification’ class, which would provide additional information on how the actions are to be executed, emphasizing the modular and extensible nature of the model.<br/><br/><br/>
