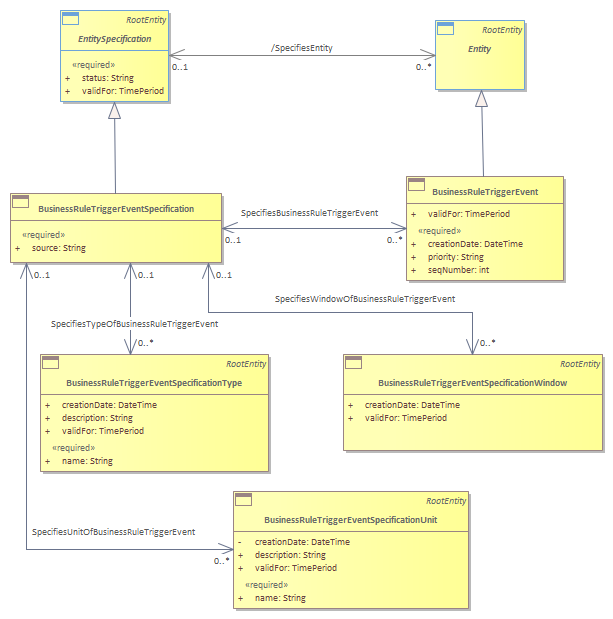

Figure BR.06 - Business Rule Trigger Event

The ‘Business Rule Trigger Event’ class represents information to capture events that initiate the evaluation of business rules. The figure shows reuse of SID pattern by way Entity/EntitySpec and information that captures the Business Rule Trigger Event Types and Unit. <br/>A business rule execution processes will link specific trigger occurrences to the activating rule. Business Rule Trigger Event is crucial for the dynamic aspect of business rules, as it allows to capture information that enable respond to real-time events and changes in the environment.  <br/>In the wider context of the figure, the ‘Business Rule Trigger Event’ will capture event specifications, types, and windows and interact with the ‘Business Rule Trigger Event Specification’ class to detail the characteristics of events. ‘Business Rule Trigger Event Type’ and ‘Business Rule Trigger Event Window’ classes help to classify and time-bound events. <br/>
